Electric Outboard Motor - EP50
Electric Outboard Motor - EP50

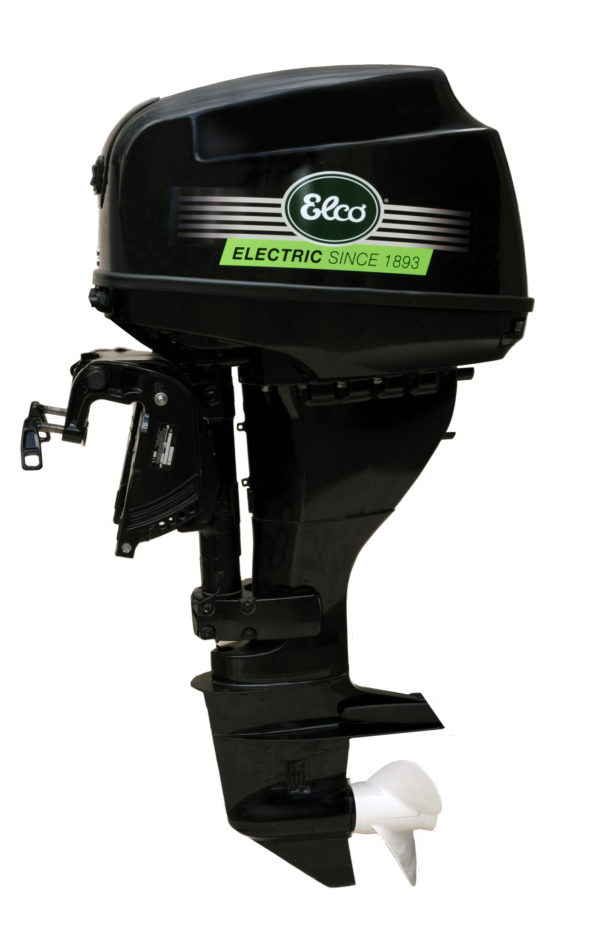

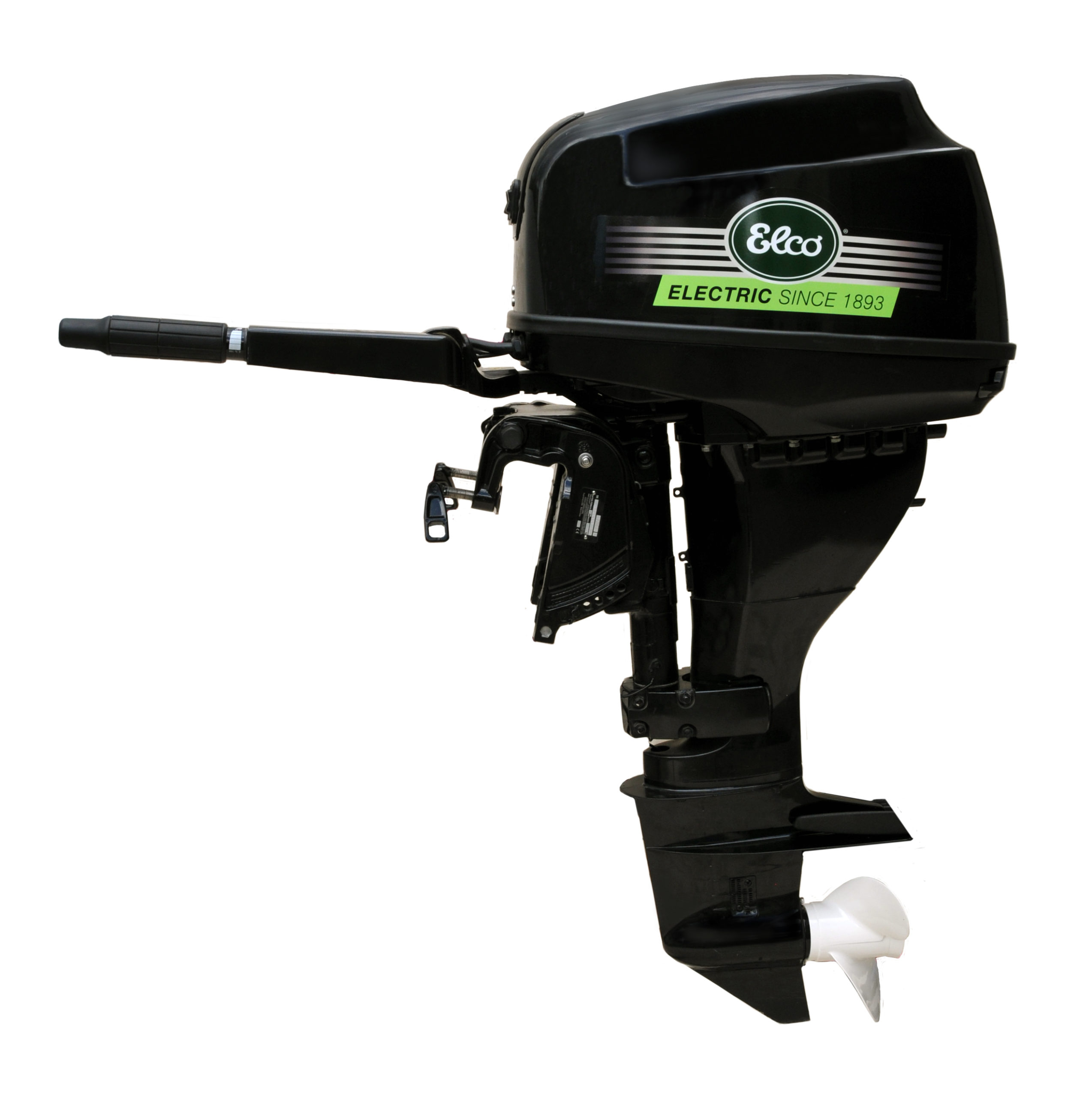

EP-50 Electric Outboard

$9,950.00

-

Comparable HP:50HP
Voltage:96 Volts
Suggested Battery Package Options:
AGM – Victron – 12V / 220Ah (8 pack)
Solid State – 96V / 210Ah (21.0kWh) (2-48V/210Ah-batteries)

Elco’s EP-50 is built on a robust chassis that turns a large propeller. This true workhorse creates incredible torque for precise maneuvering in adverse conditions. 96-volt batteries draw ample continuous amps required to power large pontoon boats to double-digit speed or push jon boats to planing speed, while boaters benefit from quiet, smooth, clean operation combustion engines can’t match.

Configure your electric outboard propulsion system using the steps below.



If your transom is 15″ or longer, a long shaft is recommended.

Step 2. Select Throttle Control, if remote throttle was chosen above.

(Remote throttle selection is not needed if tiller was chosen above)

Step 3. Select Batteries & Charger

If you do not have batteries and a charger, you will need to select either AGM or Lithium batteries with the matching charger type. If you already have batteries but need a charger, select the applicable charger based on the type of battery you have.

Step 4. Select Battery Connection Kit

Pre-assembled battery connection cables simplify motor installation. Our 7-foot electric battery cables and 18-inch battery jumper cables are adequately sized based on the motor amp draw. Swaged terminal ends are sealed with epoxy-impregnated heat-shrink tubing where they connect to marine-grade fuse blocks, Anderson motor connectors, and batteries.

Step 5. Select Battery Monitor

Battery monitors help you take better care of your battery. Your battery monitor also provides real-time and historical information on voltage, power consumption, and more.

  • *

    Elco DASH App – Bluetooth Connector

    $345.00

    Elco’s DASH motor app wirelessly turns any iOS or Android mobile device into a full-function dashboard.

    (DASH Bluetooth connector required on the motor, included with purchase)

    Click Store to Download after install

    AddRemove

    Elco NMEA 2000 Gateway

    $545.00

    Elco NMEA 2000 Gateway: If you purchase the Elco NMEA 2000 gateway separately, it will be pre-installed in your Elco outboard or inboard. To ensure everything works smoothly, make sure your depth finder or chart plotter supports NMEA 2000, as features can vary by model. You’ll also need to buy a complete NMEA 2000 starter kit for installation. For the best results, consider consulting a marine professional for setup help.

    AddRemove

    VICTRON BMV-700H

    $728.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

    VICTRON BMV-710H- BLUETOOTH BATTERY MONITOR

    $775.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

Step 6. Select Electric Trim and Tilt

Electric trim and tilt units simplify boat operation, increase performance and safety. This electric trim and tilt model matches this electric outboard.

Product total

Options total

Grand total

SKU: EP-50 Category: Tag:

Elco’s EP-50 is built on a robust chassis that turns a large propeller. This true workhorse creates incredible torque for precise maneuvering in adverse conditions. 96-volt batteries draw ample continuous amps required to power large pontoon boats to double-digit speed or push jon boats to planing speed, while boaters benefit from quiet, smooth, clean operation combustion engines can’t match. Remote or tiller control and long or short shaft lengths accommodate most boats. NMEA 2000 and Elco’s DASH app seamlessly connect to navigation displays as well as wireless and wearable screens.

Not Ready To Buy?

Learn More

Specifications

COMPARABLE GAS/PETROL RATING 50 hp
INPUT POWER (WATTS) 26, 400 watts
VOLTAGE 96 VDC
MAXIMUM CURRENT 275 amps DC
MOTOR Brushless PMAC
STATIC THRUST 975 lb
COOLING SYSTEM Water Cooled
THROTTLE SYSTEM Remote control or Tiller option
THROTTLE Side mount or Top mount option, 16′ length
THROTTLE CABLE EXTENSION OPTIONAL 6’
LOWER UNIT GEAR RATIO 2.08:1 (27/13)
GEAR OIL CAPACITY 8.5 ounces
TRIM AND/OR TILT Manual or Electric
PROPELLER 3- 9.875″ x 12
WEIGHT 190 lbs
SHORT SHAFT TRANSOM HEIGHT 17.5″
SHORT SHAFT OVERALL (HEIGHT, WIDTH, LENGTH) 45.4″ x 14.8″ x 27.7″
LONG SHAFT TRANSOM HEIGHT 22.5″
LONG SHAFT OVERALL (HEIGHT, WIDTH, LENGTH) 50.4″ x 14.8″ x 27.7″
MSRP $9,950
