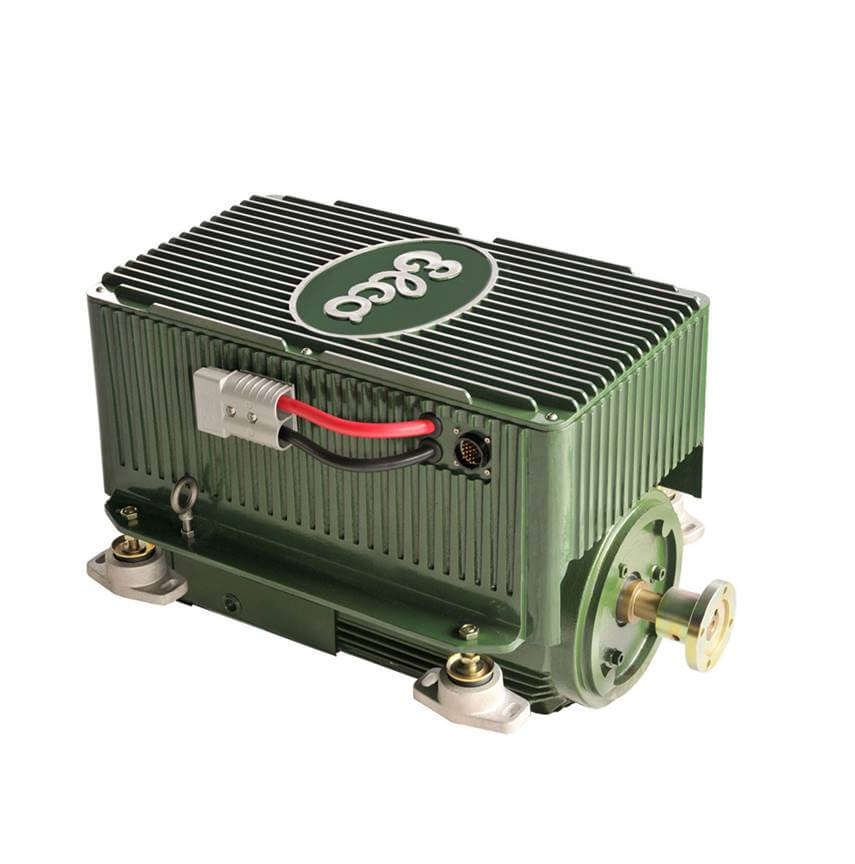

EP-70 Electric Inboard

$15,995.00

-

Comparable HP:70HP
Voltage:108 Volts
Suggested Battery Package Options:
Deep Cycle AGM – Victron – 12V / 220Ah (9 pack)
Solid State Lithium – 96V / 210Ah (42.0kWh) (4-48V/210Ah-batteries)

Congratulations on getting one step closer to purchasing your award-winning Elco Electric Inboard. Select the options and accessories below.


Download Spec Sheets

Step 1. Select Throttle Control.

Select Throttle Mount Type

Step 2. Select Couplings

Select female for motor and male for prop shaft if needed.

  • *

    Female Coupling for Motor 1-1/4

    $268.00

    Solid hub flange- 4IN X 1-1/4IN bore

    AddRemove

    Male Coupling for Prop Shaft

    $268.00

    4" Flange - Select size based on your prop shaft

    AddRemove

Step 3. Select Batteries & Charger

If you do not have batteries and a charger, you will need to select either AGM or Lithium batteries with the matching charger type. If you already have batteries but need a charger, select the applicable charger based on the type of battery you have.

Step 4. Select Battery Connection Kit

Pre-assembled battery connection cables simplify motor installation. Our 7-foot electric battery cables and 18-inch battery jumper cables are adequately sized based on the motor amp draw. Swaged terminal ends are sealed with epoxy-impregnated heat-shrink tubing where they connect to marine-grade fuse blocks, Anderson motor connectors, and batteries.

Step 5. Select Battery Monitor

Battery monitors help you take better care of your battery. Your battery monitor also provides real-time and historical information on voltage, power consumption, and more.

  • *

    Elco DASH App – Bluetooth Connector

    $345.00

    Elco’s DASH motor app wirelessly turns any iOS or Android mobile device into a full-function dashboard.

    (DASH Bluetooth connector required on the motor, included with purchase)

    Click Store to Download after install

    AddRemove

    Elco NMEA 2000 Gateway

    $545.00

    Elco NMEA 2000 Gateway: If you purchase the Elco NMEA 2000 gateway separately, it will be pre-installed in your Elco outboard or inboard. To ensure everything works smoothly, make sure your depth finder or chart plotter supports NMEA 2000, as features can vary by model. You’ll also need to buy a complete NMEA 2000 starter kit for installation. For the best results, consider consulting a marine professional for setup help.

    AddRemove

    VICTRON BMV-700H

    $728.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

    VICTRON BMV-710H- BLUETOOTH BATTERY MONITOR

    $775.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

Product total

Options total

Grand total

SKU: EP-70 Category: Tag:

Elco EP System – Electric Boat Propulsion at Its Finest

The Elco Electric Propulsion System is well engineered using advanced technologies for reliable and outstanding performance. All of Elco’s products are built in the USA.

Elco Electric Motor: Cool, Quiet & Powerful

The entire propulsion system, excluding instrument panel and batteries, is contained in a water resistant cast aluminum finned housing that contains all of the electronics, AC motor, and safety devices. The system is mounted directly in place of a typical marine diesel or gas engine. Whether on the sound, around the bay, along the lake, or on the river, it is highly valuable to protect our waters. The Elco Electric Propulsion System is a highly efficient and extremely durable alternative to fossil fuel options.

* Performance may vary based on operating conditions. The figures provided above relate to travel at between 60 – 80% of hull speed.

** Shore power-50% depth of discharge

To convert from nautical miles (nm) to statute miles multiply nm by 1.15.

With Electric Hybrid system additional kilowatts should be added depending on house loads (1,000 watts equals 1kW)

PURE ELECTRIC PERFORMANCEHYBRID ELECTRIC PERFORMANCE
Cruising speed*
7 – 8.5 knots7 – 8.5 knots
Cruising time* 6 – 2 hours70 – 42 hours
Cruising range*36 – 20 nm490 – 365 nm
Recharging time standard charger**3 – 4 hours
Recharging time quick charger**2 – 3 hours
Number of 12 volt 8-D batteries (245 Ah)3 batteries3 batteries
Battery bank voltage in total108 vdc
Amps (maximum)275 amps
Kilowatts (peak output kW rating)51.5 kW
Kilowatts (continuous output kW rating)29.75 kW
ChargerElcon PFC4000
Quick charger (optional)Elcon PFC5000
Genset kilowatt size (AC or DC)*8 – 18 kW
Typical fuel tank capacity for genset (gallons)75 gal
Battery bank voltage108 vdc
Charger(s) required1 – 2 chargers
Genset (continuous output rating)16kW, 14.1kW, 10.4kW
