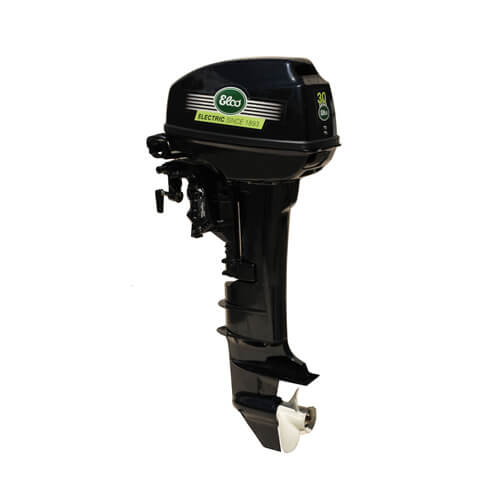

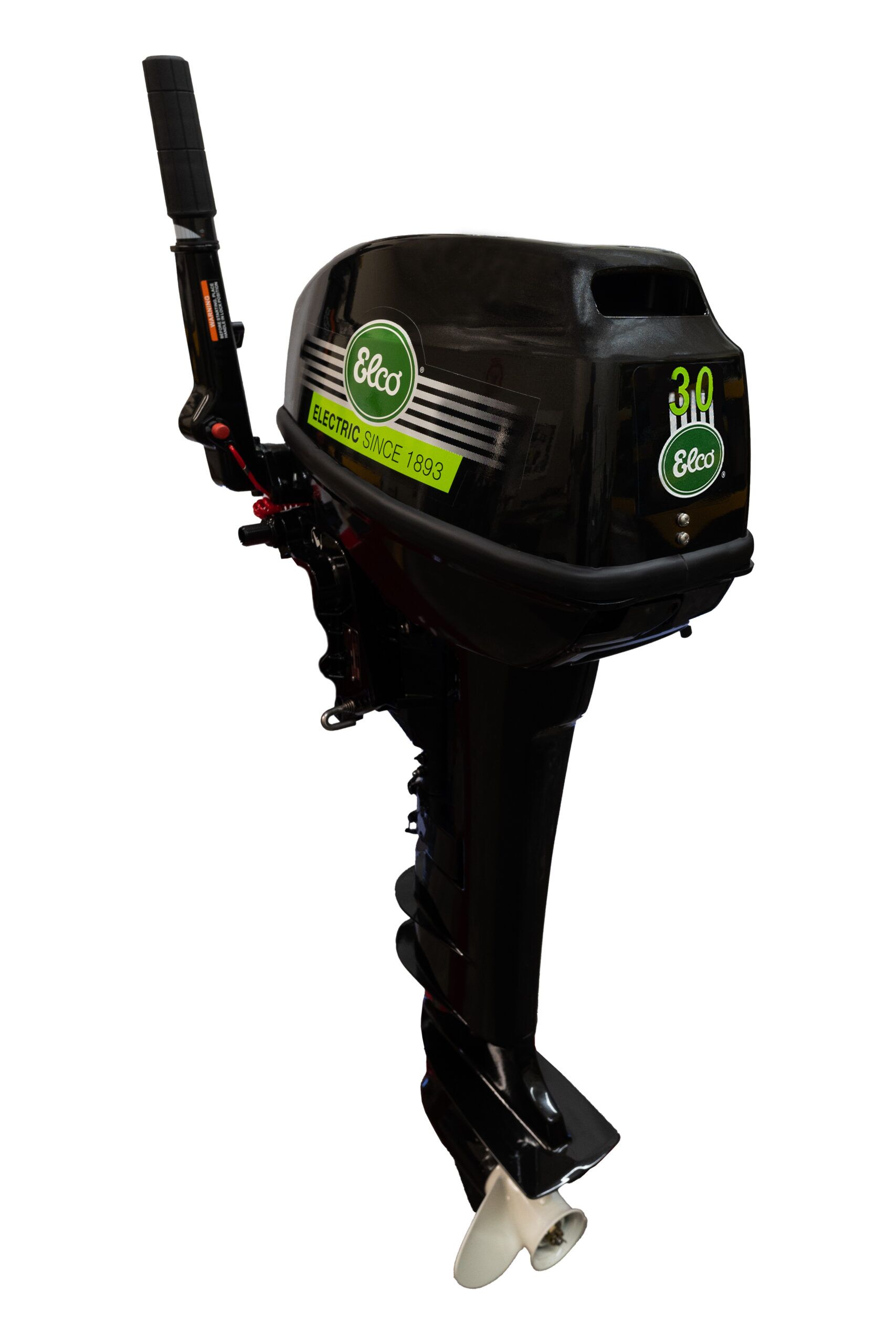

EP-30 Electric Outboard

$7,950.00

-

Comparable HP:30HP
Voltage:96 Volts
Suggested Battery Package Options:
AGM – Victron – 12V / 165Ah (8 pack)
Solid State – 96V / 120Ah (12.0kWh) (2-48V/120Ah-batteries)

Elco’s EP-30 is built on the same chassis as the EP-20, but its 96-volt batteries supply more continuous wattage to provide extra power for quick bursts of speed favored by lake and reservoir fishermen or while docking heavily loaded boats.

Configure your electric outboard propulsion system using the steps below.



If your transom is 15″ or longer, a long shaft is recommended.

Step 2. Select Throttle Control, if remote throttle was chosen above.

(Remote throttle selection is not needed if tiller was chosen above)

Step 3. Select Batteries & Charger

If you do not have batteries and a charger, you will need to select either AGM or Lithium batteries with the matching charger type. If you already have batteries but need a charger, select the applicable charger based on the type of battery you have.

Step 4. Select Battery Connection Kit

Pre-assembled battery connection cables simplify motor installation. Our 7-foot electric battery cables and 18-inch battery jumper cables are adequately sized based on the motor amp draw. Swaged terminal ends are sealed with epoxy-impregnated heat-shrink tubing where they connect to marine-grade fuse blocks, Anderson motor connectors, and batteries.

Step 5. Select Battery Monitor

Battery monitors help you take better care of your battery. Your battery monitor also provides real-time and historical information on voltage, power consumption, and more.

  • *

    Elco DASH App – Bluetooth Connector

    $345.00

    Elco’s DASH motor app wirelessly turns any iOS or Android mobile device into a full-function dashboard.

    (DASH Bluetooth connector required on the motor, included with purchase)

    Click Store to Download after install

    AddRemove

    Elco NMEA 2000 Gateway

    $545.00

    Elco NMEA 2000 Gateway: If you purchase the Elco NMEA 2000 gateway separately, it will be pre-installed in your Elco outboard or inboard. To ensure everything works smoothly, make sure your depth finder or chart plotter supports NMEA 2000, as features can vary by model. You’ll also need to buy a complete NMEA 2000 starter kit for installation. For the best results, consider consulting a marine professional for setup help.

    AddRemove

    VICTRON BMV-700H

    $728.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

    VICTRON BMV-710H- BLUETOOTH BATTERY MONITOR

    $775.00

    This monitor is used to see how much charge you have left in your batteries.

    AddRemove

Step 6. Select Electric Trim and Tilt

Electric trim and tilt units simplify boat operation, increase performance and safety. This electric trim and tilt model matches this electric outboard.

Product total

Options total

Grand total

SKU: EP-30 Category: Tag:

Elco’s EP-30 is built on the same chassis as the EP-20, but its 96-volt batteries supply more continuous wattage to provide extra power for quick bursts of speed favored by lake and reservoir fishermen or while docking heavily loaded boats. Remote or tiller control and long or short shaft lengths accommodate most boats. NMEA 2000 and Elco’s DASH app seamlessly connect to navigation displays as well as wireless and wearable screens.

Not Ready To Buy?

Specifications



BATTERY VOLTAGE (NOMINAL)96 Volts
BATTERY VOLTAGE (OPERATING RANGE)90-115 Volts
BATTERY CURRENT (MAXIMUM)165Ah
SUGGESTED BATTERY CAPACITY130Ah-225Ah
KILOWATTS (CONTINUOUS)15.8kW
STATIC THRUST585lbs
MAXIMUM RPM5750 RPM
PROPELLER3 - 9.25” x 8”
LOWER UNIT GEAR RATIO2.08:1
SUGGESTED FOR BOAT LENGTHS (LOA)16’-26’
SUGGESTED FOR BOAT WEIGHTS1,400lbs
COMPARABLE HORSEPOWER30HP
HP REPLACEMENT RANGE25-34HP
OUTBOARD WEIGHT90lbs
SHORT SHAFT OVERALL (HEIGHT, WIDTH, LENGTH)43"" x 11"" x 18.5"
SHORT SHAFT OVERALL (HEIGHT, WIDTH, LENGTH)46"" x 11" x 18.5"
MSRP$7,950
