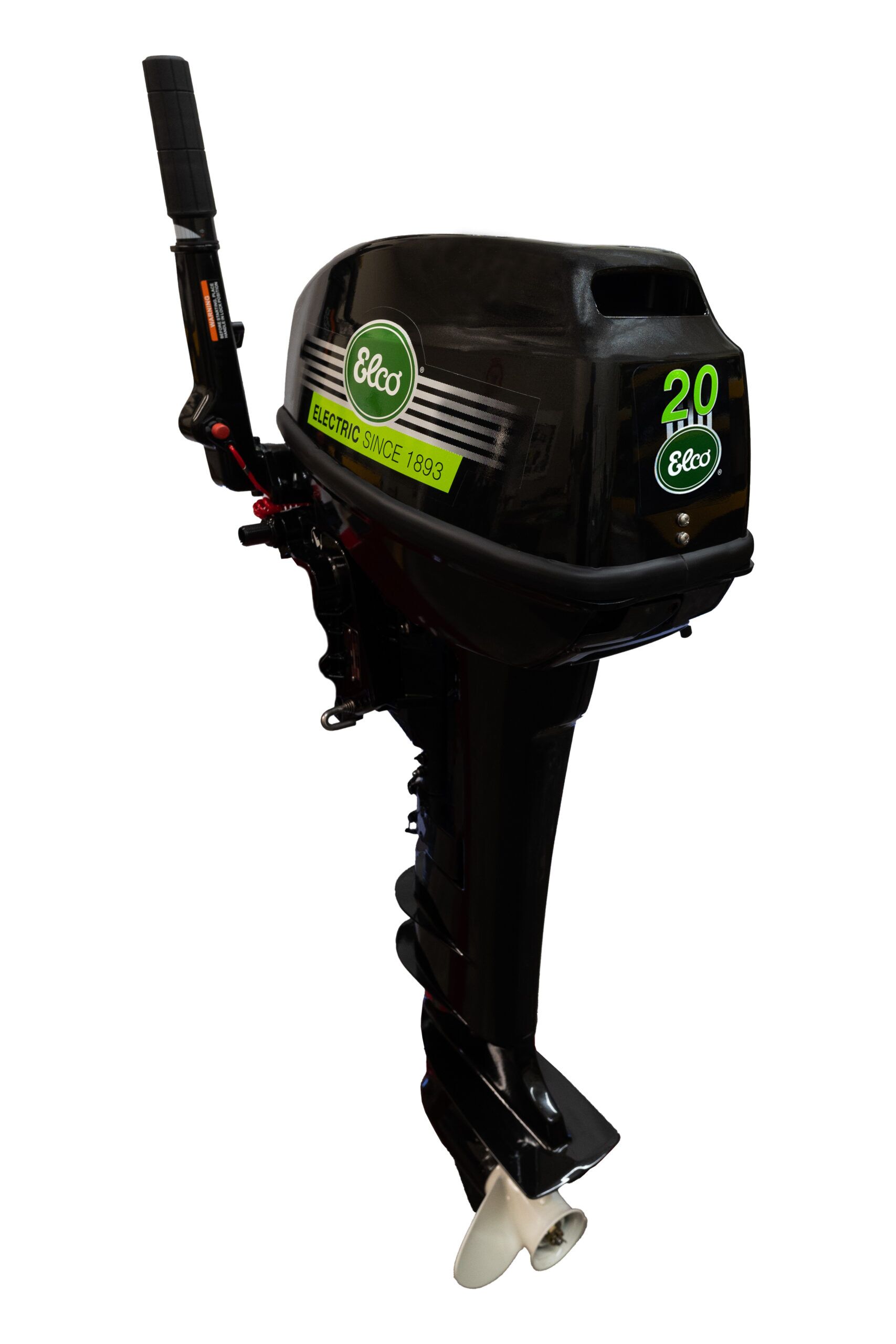

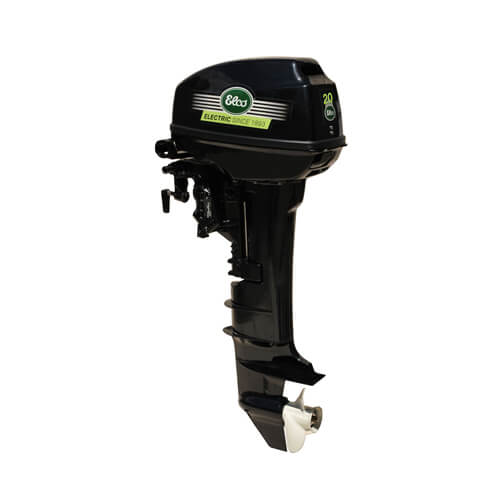

20 hp electric boat motor by Elco
EP-20 Electric Outboard - Image 2
20 hp electric boat motor by Elco

EP-20 Electric Outboard

$5,450.00

-

Comparable HP:20HP Boat Motor
Voltage:48 Volts
Suggested Battery Package Options:
AGM – Victron – 12V / 165Ah (4 pack)
Solid State – 48V / 210Ah (10.5kWh) (1 pack)

Elco’s EP-20, which utilizes the same chassis as the EP-14, replaces 20 horsepower combustion engines yet weighs about the same as most 9.9-model gas outboards. 48-volt operation optimizes performance and efficiency.

Configure your electric outboard propulsion system using the steps below.



If your transom is 15″ or longer, a long shaft is recommended.

Step 2. Select Throttle Control, if remote throttle was chosen above.

(Remote throttle selection is not needed if tiller was chosen above)

Step 3. Select Batteries & Charger

If you do not have batteries and a charger, you will need to select either AGM or Lithium batteries with the matching charger type. If you already have batteries but need a charger, select the applicable charger based on the type of battery you have.

Step 4. Select Battery Connection Kit

Pre-assembled battery connection cables simplify motor installation. Our 7-foot electric battery cables and 18-inch battery jumper cables are adequately sized based on the motor amp draw. Swaged terminal ends are sealed with epoxy-impregnated heat-shrink tubing where they connect to marine-grade fuse blocks, Anderson motor connectors, and batteries.

Step 5. Select Battery Monitor

Battery monitors help you take better care of your battery. Your battery monitor also provides real-time and historical information on voltage, power consumption, and more.

  • *

    VICTRON BMV-700 BATTERY MONITOR KIT

    $186.00

    The BMV-700 is Victron’s newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere-hours consumed are calculated by integrating the current flowing in or out of the battery.

    AddRemove

    VICTRON BMV-712 BLUETOOTH BATTERY MONITOR KIT

    $243.00

    Built-in Bluetooth Communication - Monitor your batteries on Apple or Android smartphones, tablets, macbooks, and other devices Easy to Install.

    AddRemove

    Elco DASH App – Bluetooth Connector

    $345.00

    Elco’s DASH motor app wirelessly turns any iOS or Android mobile device into a full-function dashboard.

    (DASH Bluetooth connector required on the motor, included with purchase)

    Click Store to Download after install

    AddRemove

    Elco NMEA 2000 Gateway

    $545.00

    Elco NMEA 2000 Gateway: If you purchase the Elco NMEA 2000 gateway separately, it will be pre-installed in your Elco outboard or inboard. To ensure everything works smoothly, make sure your depth finder or chart plotter supports NMEA 2000, as features can vary by model. You’ll also need to buy a complete NMEA 2000 starter kit for installation. For the best results, consider consulting a marine professional for setup help.

    AddRemove

Step 6. Select Electric Trim and Tilt

Electric trim and tilt units simplify boat operation, increase performance and safety. This electric trim and tilt model matches this electric outboard.

Product total

Options total

Grand total

SKU: EP-20 Category: Tag:

Our EP-20 is a clean alternative to a traditional 20 hp gas-powered outboard. Experience the perfect equilibrium of robust power and economical operation with Elco’s EP-20 electric outboard. This 20-hp electric outboard motor provides powerful propulsion with quiet operation and significantly reduces environmental impact over traditional gas- or diesel-fueled motors. Our 20-hp electric boat motor is easy to operate, and you can customize it with a selection of accessories to enhance your boating experience. With a rich history dating back to the 1893 World’s Columbian Exhibition in Chicago, Elco continues its tradition of excellence with this 20-hp electric outboard motor in the mid-range of its line of exceptional electric boat motors. Choose the EP-20 electric outboard to enjoy a seamless blend of performance, economy, and sustainability.

Checkout this unboxing video of our EP-20 hp Electric Boat Motor!
https://www.youtube.com/watch?v=MG4POuDexJ8

FREQUENTLY ASKED QUESTIONS – FAQ’s

What is the electric equivalent of a 20 hp gas motor?

Our EP-20 Electric Outboard is the equivalent to a 20hp boat motor.

How much does the EP-20 motor weigh?

Our EP-20 Electric Outboard weighs about the same as most 9.9-model gas outboards.

Can this replace my current 20 hp outboard?

Yes! Our EP-20 efficiently replaces current 20hp gas powered boat motors. It provides powerful propulsion with quiet operation and significantly reduces the environmental impact. This is a great option for electric-only lakes and beyond!

Why choose the EP-20 Electric Outboard Motor over a 20hp gas boat motor?

There are so many benefits to running our EP-20 electric outboard motor instead of a gas powered 20hp boat motor. Our electric boat motors are quiet, efficient to run, powerful, easy to operate and reduce the need to ever buy fuel again!

Not Ready To Buy?

Learn More

Specifications



BATTERY VOLTAGE (NOMINAL)48 Volts
BATTERY VOLTAGE (OPERATING RANGE)40-59 Volts
BATTERY CURRENT (MAXIMUM CONTINUOUS)175amps
SUGGESTED BATTERY CAPACITY165Ah-225Ah
KILOWATTS (CONTINUOUS)8.4kW
STATIC THRUST390lbs
MAXIMUM RPM5000 RPM
PROPELLER3 - 9.25” x 8”
LOWER UNIT GEAR RATIO2.08:1
SUGGESTED FOR BOAT LENGTHS (LOA)10’-24’
SUGGESTED FOR BOAT WEIGHTS1,250lbs
COMPARABLE HORSEPOWER20HP
HP REPLACEMENT RANGE17-24HP
OUTBOARD WEIGHT85lbs
SHORT SHAFT OVERALL (LENGTH, WIDTH, HEIGHT)18.5"x11"x43"
SHORT SHAFT OVERALL (LENGTH, WIDTH, HEIGHT)18.5"x11"x46"
MSRP$5,450
