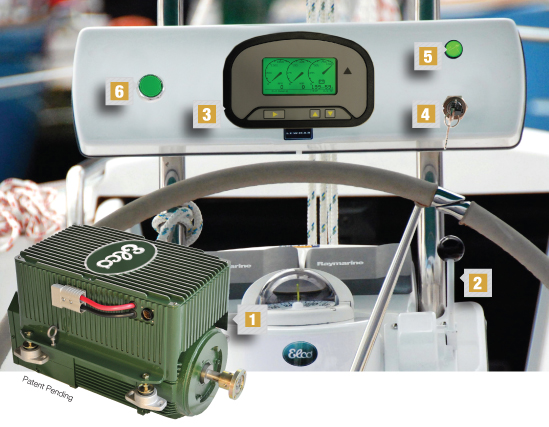

Standard Equipment with every Elco Electric Propulsion System
The list below shows you what you will receive with every purchase, it’s important to know you’re not just getting a motor you’re receiving an Electric Propulsion System. At Elco Motor Yachts we have a dedicated team willing to answer any questions – please call 877-411-ELCO.
1 The water resistant “cooling” motor enclosure
2 Throttle
3 E-Gauge IV
4 Ignition key
5 Power on light
6 Power boost button
Inverter
Controller
Fuses, The wiring connections/plug, Primary wiring loom, Interior detailed wiring, Complete operations manual
E-Gauge VII upgrade to a feature rich full color display
Motor Specifications
|
Length |
17″ |
|
Width |
16.22″ |
|
Height |
15.8″ |
|
Weight |
170 lbs |
|
Motor service life (estimated) |
50,000 hours |
|
Warranty |
3 years parts and 2 years labor on all Elco Electric Motors |
Electrical System |
|
|
Volts |
36 vdc |
|
Amp/hrs min |
220 amp/hrs |
|
Number of batteries |
3 |
|
Battery weight (total) |
283.5-405 lbs |
|
Charger(s) |
1×36 volt |
|
Plug-in-play components |
3 |
|
enGauge IV display panel |
yes |
|
enGauge VII full color display panel with video |
optional |
|
Water resistant |
yes |
|
Battery service life (Flooded wet cell) |
5 yrs |
|
Battery service life (AGM) |
8 yrs |
|
Battery service life (Lith iron phospate) |
12 yrs |
|
Generator (electrical recharge) |
yes |
|
Generator (continuous running) |
yes |
Performance |
|
|
Boat size (recommended) |
10′ to 20′ |
|
Cruising range/duration @ 4 knots |
7-10 hrs |
|
Cruising range/duration @ 5 knots |
5-7 hrs |
|
Cruising range/duration @ full speed |
3-6 hrs |
|
Recharging time (shore power) |
1-5 hrs ( typical maximum of 50% depth of discharge) |
|
Recharging (solar) |
available option |
|
Recharging (wind) |
available option |
|
RPM (designed/max) |
1,500 rpm |
|
Power boost |
1,800 rpm |
|
Horse power diesel equivalency |
6 hp |
|
KW Equivalency |
3 kW |
|
MPG Equivalency (estimated) |
80 mpg |
*Performance is based on battery power only – Run time can be continuous with Genset
